Pneumatic straight grinder PGAS 10/200 ME

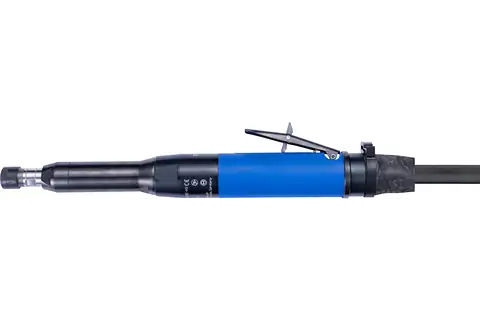

Air-powered straight grinder PGAS 10/200 ME-HV 20,000 RPM/1,000 watts

PGAS 10/200 ME-HV
Item number:
80101070
EAN:
4007220652749
New
Air-powered straight grinder PGAS 10/200 ME-HV 20,000 RPM/1,000 watts 1
Air-powered straight grinder PGAS 10/200 ME-HV 20,000 RPM/1,000 watts 1
Technical data
Login / Register
Retailers-Search
Technical information
Air-powered straight grinder PGAS 10/200 ME-HV 20,000 RPM/1,000 watts
Air consumption, at idle
1.38 m³/min
Air consumption, under load
1.1 m³/min
Air supply hose internal dia.
13 mm
Collet group
16
Exhaust direction
rear
Height
46 mm
Incl. dia collet [mm]
6 mm
Length
383 mm
Net weight
1.307 kg
Number of oil drops [min]
7 pcs.
Operating pressure
6.3 bar
PFERD TOOLS type
PGAS 10/200 ME-HV
Power output
1000 watts
Rotational speed
20000 RPM
Throttle type
Lever
Version
with medium-length extension and elastic bearing
Width
46 mm
Packaging unit
1 piece
Description

The drive is equipped with a collet tool mounting for mounted tools.

The exhaust direction the air grinder is at the back.

The air grinder has to be used with oil. Due to the lever valve, the drive has a dead man's switch.
Advantages
  • No dust turbulence on the workpiece side.
  • Safe working using dead man's switch.
  • Powerful drive for heavy-duty use.
  • Medium-length design for use when access is restricted.
  • The elastically mounted spindle enables vibration-low working.
Safety notes
  • The drive must be operated with the specified number of oil droplets in order to prevent premature malfunctioning.
Contents
  • 1 m exhaust hose and 2.5 m air supply hose with 1/2" male threaded connection, 6 mm collet (collet group 16), 2 keys (1x EM SW 17 mm, 1x DM SW 20/22 mm).
