Air-powered chisel hammer PH 23 F EG05

Air-powered chisel hammer PH 23 with fist grip insertion group EG05 lightweight up to 3.4 kg

PH 23 F EG05

Item number:: 80300110
EAN:: 4007220736746

New

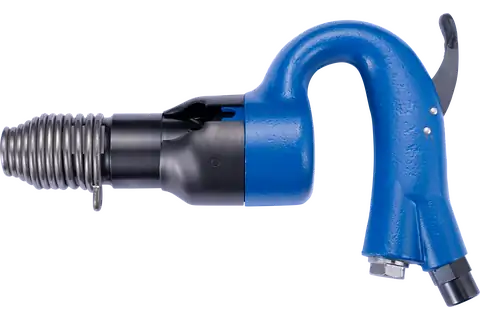

Air-powered chisel hammer PH 23 with fist grip insertion group EG05 lightweight up to 3.4 kg 1

Technical data

Retailers-Search

Technical information

Air-powered chisel hammer PH 23 with fist grip insertion group EG05 lightweight up to 3.4 kg

Air consumption, at idle: 0.3 m³/min
Air consumption, under load: 0.3 m³/min
Chisel holder: Spring
Exhaust direction: front
Frequency: 2.700
Height: 150 mm
Insertion group: EG05
Length: 241.6 mm
Max. operating pressure: 6.3 bar
Min. ø supply air hose inside: 10 mm
Net weight: 2.3 kg
Number of oil drops [min]: 5 drops
Oil viscosity: 22-32 cSt
Silencer: Steel
Stroke length: 40 mm
Uncertainty K - Vibration: 0.3 m/s²
Uncertainty K - noise: 3 db(A)
Version: Fist grip open
Vibration emission values ah/ah, SG: 7.4 m/s²
Width: 58 mm
Packaging unit: 1 piece

Description

The air hammer with fist grip has the exhaust air flow at the front. It falls into the category of lightweight pneumatic chisel hammers up to 3.4 kg. The drive is equipped with a mounting for chisel tools.

The lightweight pneumatic chisel hammers from PFERD TOOLS are ideal for cleaning foundry products, light construction work and automotive bodywork – for example, for cutting open flanged seams or weld seams. Thanks to their light impact, finely adjustable striking power and low recoil, combined with round guide bushings, they are also ideally suited to light to very light riveting work. Furthermore, their low weight makes them the perfect choice for renovation work at height.

The chisel hammer with exhaust directed to the front and steel silencer is suitable for all chisels in insertion group EG05 and features a chisel holding spring to hold the chisels.

Advantages

Can be activated at three bar or above.
A sophisticated overall concept makes the chisel hammers high-performance and versatile.
Open fist grip ensures ideal handling.

Ordering notes

The drive is supplied without an air supply hose or nozzle.

Safety notes

The drive must be operated with the specified number of oil droplets in order to prevent premature malfunctioning. The use of steel nozzles is required to ensure the safe operation of air hammers.

Contents

1x chisel holding spring MHF 31-R, 1x damping ring DR D14X8.
