  • Air-powered chisel hammer PH 34 with fist grip insertion group EG03 lightweight up to 3.4 kg

Air-powered chisel hammer PH 34 F EG03

Air-powered chisel hammer PH 34 with fist grip insertion group EG03 lightweight up to 3.4 kg

PH 34 F EG03
Item number:
80300120
EAN:
4007220736753
New

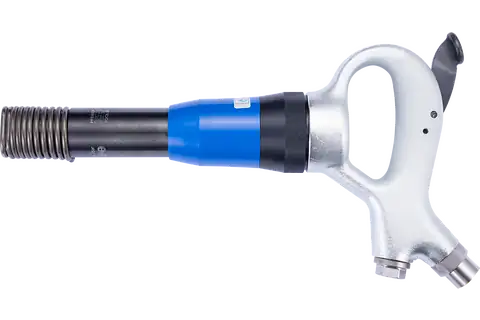

Air-powered chisel hammer PH 34 with fist grip insertion group EG03 lightweight up to 3.4 kg 1
Air-powered chisel hammer PH 34 with fist grip insertion group EG03 lightweight up to 3.4 kg 1
Technical data
Login / Register
Retailers-Search
Technical information
Air-powered chisel hammer PH 34 with fist grip insertion group EG03 lightweight up to 3.4 kg
Air consumption, at idle
0.4 m³/min
Air consumption, under load
0.4 m³/min
Chisel holder
Spring
Exhaust direction
front
Frequency
2.300
Height
188 mm
Insertion group
EG03
Length
344 mm
Max. operating pressure
6.3 bar
Min. ø supply air hose inside
10 mm
Net weight
3.4 kg
Number of oil drops [min]
5 drops
Oil viscosity
22-32 cSt
Silencer
Plastics
Stroke length
90 cm
Uncertainty K - Vibration
0.3 m/s²
Uncertainty K - noise
3 db(A)
Version
Fist grip open
Vibration emission values ah/ah, SG
10.5 m/s²
Width
60 mm
Packaging unit
1 piece
Description

The air hammer with fist grip has the exhaust air flow at the front. It falls into the category of lightweight pneumatic chisel hammers up to 3.4 kg. The drive is equipped with a mounting for chisel tools.

The lightweight pneumatic chisel hammers from PFERD TOOLS are ideal for cleaning foundry products, light construction work and automotive bodywork – for example, for cutting open flanged seams or weld seams. Thanks to their light impact, finely adjustable striking power and low recoil, combined with round guide bushings, they are also ideally suited to light to very light riveting work. Furthermore, their low weight makes them the perfect choice for renovation work at height.

The chisel hammer with exhaust directed to the front and plastic silencer is suitable for all chisels in insertion group EG03 and features a chisel holding spring to hold the chisels.
Advantages
  • Can be activated at three bar or above.
  • A sophisticated overall concept makes the chisel hammers high-performance and versatile.
  • Closed fist grip ensures ideal handling.
Ordering notes
  • The drive is supplied without an air supply hose or nozzle.
Safety notes
  • The drive must be operated with the specified number of oil droplets in order to prevent premature malfunctioning. The use of steel nozzles is required to ensure the safe operation of air hammers.
Contents
  • 1x chisel holding spring MHF 31, 1x damping ring DR D15X7.
