Bench grinding wheels CARBIDE

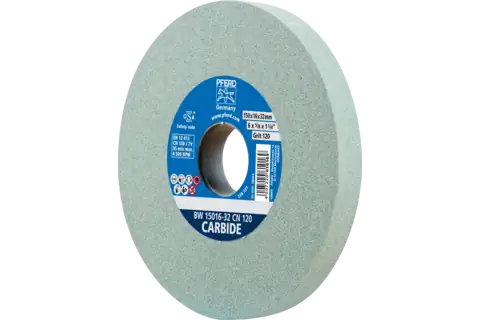

Bench grinding wheel dia. 150x16 mm centre hole dia. 32 mm SiC120 for hard materials e.g. tungsten carbide

Item number:
39008421
EAN:
4007220610169

Login / Register
Choose options
Dia. external
Dia. hole
Grit size
Width
Technical information
Bench grinding wheel dia. 150x16 mm centre hole dia. 32 mm SiC120 for hard materials e.g. tungsten carbide

Dia. external
150 mm
Dia. hole
32 mm
Grit size
120
Max. RPM
4500 RPM
Width
16 mm
Packaging unit
1 piece
Description

PFERD bench grinding wheels have been adapted to the standard bench grinders on the market.

The CARBIDE type is used on hard materials, such as for sharpening tungsten carbide tools.

Advantages
  • Long tool life.
  • High dimensional stability.
  • High abrasive performance.
  • Integrated adapter sleeves for mounting on almost any bench grinder spindle.
Recommendations for use
  • Dressing the disc on a regular basis exposes sharp grain and maintains an even grinding area.
  • Constantly adjust the workpiece support to the grinding disc diameter (gap width max. 3 mm).
Safety notes
  • The maximum permitted peripheral speed is 35 m/s.
  • For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
  • Before clamping, the grinding tool must be ring tested to make sure that it does not have any cracks (undamaged grinding tools give a clear tone).
Materials that can be worked
Glass
Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
Steel materials with a hardness > 54 HRC
Tungsten carbide
Applications
Deburring

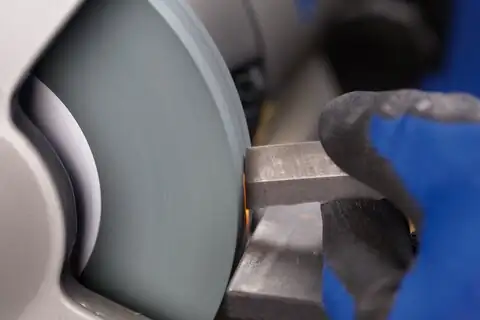

Sharpening
Working on edges (chamfering, rounding)
Drive types
Bench grinder
