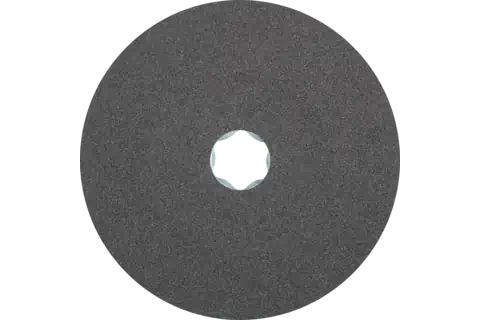

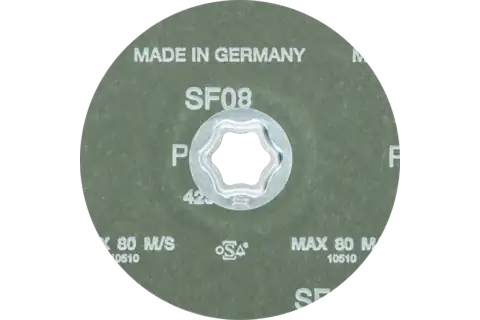

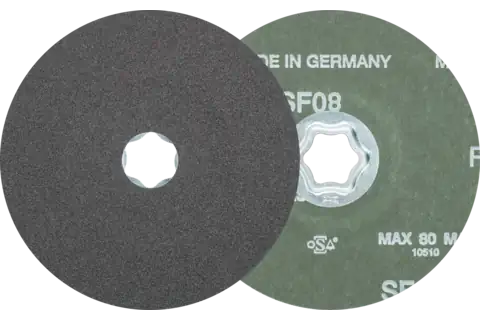

COMBICLICK SiC fibre disc dia. 125 mm SIC120 for hard non-ferrous metals

Technical information

COMBICLICK SiC fibre disc dia. 125 mm SIC120 for hard non-ferrous metals

Abrasive: Silicon carbide SiC/C
Dia. external: 125 mm
Grit size: 120
Max. RPM: 12200 RPM
Packaging unit: 25 pieces

Description

The COMBICLICK system consists of a specially developed backing pad and a rugged mounting system at the back of the tool. With the backing pad, COMBICLICK tools can be used on commercially available angle grinders. The unique geometry of the cooling slots ensures high air throughput, which in turn considerably reduces the thermal load on the abrasive material and the workpiece. Compared with conventional tools, the quick-mounting system, robust holder, secure tool-locking feature and integrated cooling system together achieve a workpiece temperature that is 30 % lower, a 25 % higher stock removal rate, a 30 % longer tool life, and better utilization of the abrasive material.

PFERD TOOLS fibre discs are manufactured in accordance with ISO 16057 in shape A1 version F under the designation "vulcanized fibre disc".

For general grinding work on components made from aluminium, copper, bronze, titanium and fibre-reinforced plastics. Particularly recommended for use on titanium alloys. Ideally suited to use in the aeronautical industry, especially where SiC is the only approved abrasive, e.g. for use on engine components.

Advantages

The innovative quick-mounting system ensures convenient handling and cool grinding.
High economic efficiency thanks to long tool life and very high stock removal rate.
Consistent surface finish thanks to high-quality abrasives.
Extremely quick and easy tool changes, which reduces process costs.
Using COMBICLICK helps to avoid scratches caused by protruding clamping pieces, and exploits the abrasive material that is available.
Particularly soft and flexible grinding performance with face-down grinding.

Recommendations for use

Use COMBICLICK fibre discs with the COMBICLICK backing pad on commercially available angle grinders.
Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.
Particularly soft and flexible grinding performance with face-down grinding.

Ordering notes

Please order COMBICLICK backing pads separately.

Safety notes

The maximum permitted peripheral speed is 80 m/s.
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Materials that can be worked: Aluminium; Bronze; Fibre-reinforced thermosetting plastics (GRP, CRP); Stone; Thermoplastics; Titanium; Titanium alloys

Applications: Deburring; Leveling; Step-by-step fine grinding; Surface work; Working on edges; Work on weld seams

Drive types: Angle grinder; Cordless angle grinder; Drive spindle

PFERDVALUE

PFERD TOOLS EFFICIENCY recommends COMBICLICK for working for long periods with low levels of fatigue, whilst saving resources and achieving perfect results as quickly as possible. Tool changing and setting-up time is reduced thanks to the quick-mounting system. COMBICLICK from PFERD TOOLS is protected extensively by patents in Europe.

PFERD TOOLS ERGONOMICS recommends COMBICLICK as an innovative tool solution to sustainably reduce the vibration, noise and dust produced during use and to improve comfort when working.
