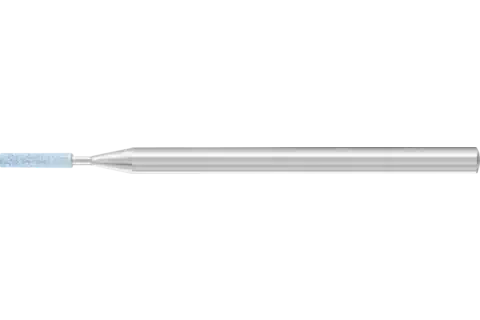

TOUGH mounted point cylindrical dia. 1.5x8 mm shank dia. 3 mm CO320 for materials that are difficult to machine

Technical information

TOUGH mounted point cylindrical dia. 1.5x8 mm shank dia. 3 mm CO320 for materials that are difficult to machine

Dia. external: 1.5 mm
Dia. shank: 3 mm
Grit size: 320
Length, shank: 44 mm
Max. RPM: 104700 RPM
RPM, optimum: 104700 RPM
Width: 8 mm
Packaging unit: 10 pieces

Description

The TOUGH type is specifically designed for use on titanium materials, nickel-based and cobalt-based alloys, hardened steel components and built-up weld deposits.

Its applications include weld dressing on repair welds and reworking on turbine blades during aircraft maintenance, as well as regrinding of repair welds in tool and mould-making.

The cylindrical shape ZY is ideal for grinding bores, radii and contours.

Advantages

Cool grinding as the grain mix is easy to break down.
High stock removal rates and very good tool life.
Constant stock removal rates thanks to the self-sharpening qualities of the ceramic oxide grain.

Recommendations for use

TOUGH mounted points perform best at a cutting speed of 30 to 50 m/s.

Safety notes

The maximum permitted rotational speed relates to the unsupported shank length of 10 mm.

Materials that can be worked: Cobalt-based alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Titanium; Titanium alloys

Applications: Deburring; Finishing; Grinding out; Grouting; Leveling; Surface work; Working on edges (chamfering, rounding); Work on weld seams

Drive types: Flexible shaft drive; Straight grinder
