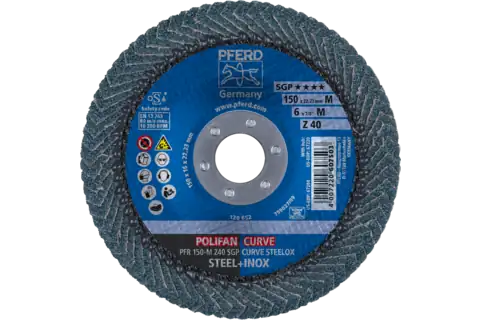

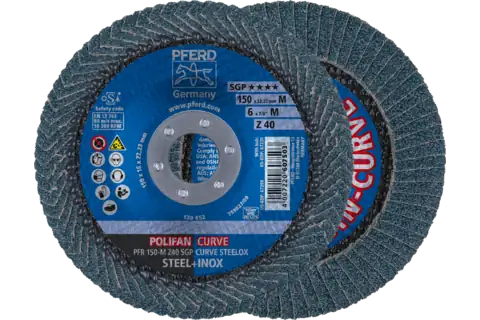

POLIFAN CURVE flap disc PFR 150x22.23 mm width M Z40 SGP STEELOX for steel/stainless steel

Technical information

POLIFAN CURVE flap disc PFR 150x22.23 mm width M Z40 SGP STEELOX for steel/stainless steel

Abrasive: Zirconia alumina Z
Dia. external: 150 mm
Dia. hole: 22.23 mm
Fillet weld radius: 5 mm
Grit size: 40
Max. RPM: 10200 RPM
Mounting system: Centre hole
Shape: PFR CURVE
Size: M (14 mm)
Packaging unit: 10 pieces

Description

Special Line SGP tools are specially developed for specific tasks and offer the user key advantages over conventional products. Furthermore, the Special Line SGP includes tools that offer ultimate economic efficiency thanks to their particularly high performance during use.

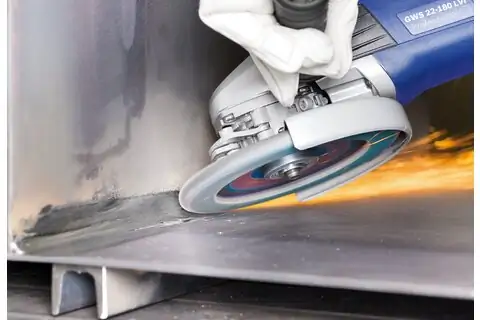

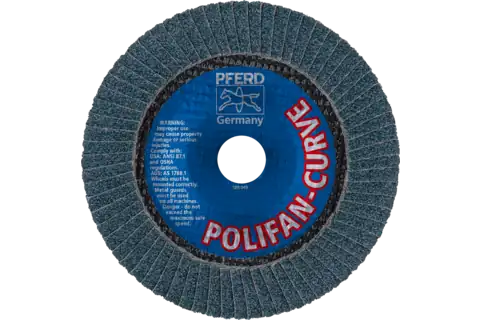

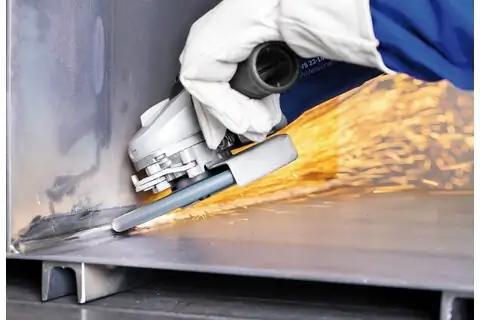

The POLIFAN-CURVE flap disc has been specially developed for work on fillet welds. It is the only flap disc in the world that has flaps on both the grinding side and on the rear side, as well as on the radius.

PFERD TOOLS’ POLIFAN CURVE is patented in many countries across the globe.

High-performance flap disc for maximum stock removal on steel and stainless steel (INOX).

Advantages

Outstanding tool life when working on fillet welds and high stock removal rate, ensuring fast working and lower production costs.
Excellent tool life when working on fillet welds.
Precise and optimum grinding of the fillet weld geometry.

Recommendations for use

After the circumference has worn down, can continue to be used as a conventional flap disc.
For fillet weld radii > 5 mm or weld seam thickness (throat thickness 'a') ≤ 6 mm with 90° joint, width at the radius: 14 mm

Materials that can be worked: Stainless steel (INOX); Steel

Applications: Chamfering; Deburring; Work on fillet welds; Work on weld seams

Drive types: Angle grinder

PFERDVALUE

PFERD TOOLS EFFICIENCY recommends POLIFAN-CURVE flap discs to achieve perfect results as quickly as possible.

PFERD TOOLS ERGONOMICS recommends POLIFAN-CURVE flap discs to sustainably reduce the vibration, noise and dust produced during use and to perceptibly improve comfort when working.

Downloads

POLIFAN flap discs zirconia alumina Z SGP CURVE STEELOX ★★★★

POLIFAN CURVE flap disc PFR 150x22.23 mm width M Z40 SGP STEELOX for steel/stainless steel

PFR 150-M Z 40 SGP CURVE STEELOX
