Tungsten carbide burrs for high performance, ALLROUND HC-FEP, conical pointed shape SKM

Tungsten carbide high-performance burr ALLROUND conical pointed SKM dia. 10x20mm shank dia. 6mm HICOAT universal

SKM 1020/6 ALLROUND HC-FEP

Item number:: 21001057
EAN:: 4007220222072

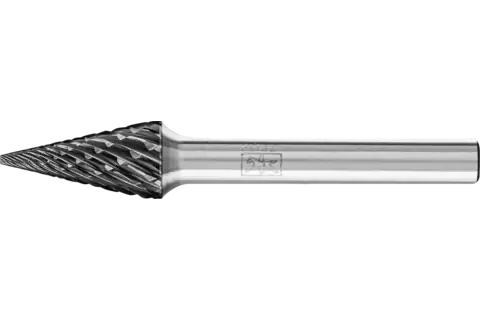

Tungsten carbide high-performance burr ALLROUND conical pointed SKM dia. 10x20mm shank dia. 6mm HICOAT universal 1

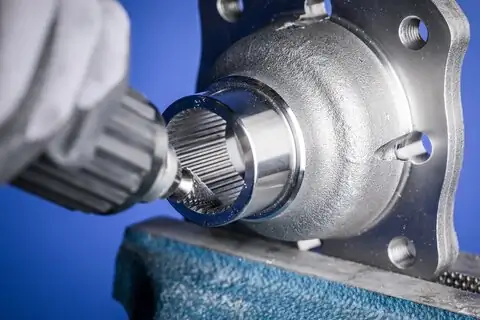

Tungsten carbide high-performance burr ALLROUND conical pointed SKM dia. 10x20mm shank dia. 6mm HICOAT universal 2

Technical data Change variant

Retailers-Search

Choose options

Dia. external

10 mm 12 mm

Dia. shank

6 mm

Length, cut

20 mm 25 mm

Length, total

60 mm 65 mm

Reset Filter

Matching accessories & spare parts

Handpieces for RCK system RCK GS 4/400

Technical information

Tungsten carbide high-performance burr ALLROUND conical pointed SKM dia. 10x20mm shank dia. 6mm HICOAT universal

Angle: 28 °
Cut: ALLROUND HC-FEP
Dia. external: 10 mm
Dia. shank: 6 mm
Length, cut: 20 mm
Length, total: 60 mm
RPM, hard non-ferrous metals: 14.000 - 24.000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 8.000 - 19.000 RPM
RPM, rust and acid-resistant steels: 14.000 - 19.000 RPM
RPM, soft non-ferrous metals: 14.000 - 29.000 RPM
RPM, steels up to 1,200 N/mm²: 14.000 - 29.000 RPM
Packaging unit: 1 piece

Description

High-performance cut ALLROUND with HICOAT coating HC-FEP is characterized by its high degree of hardness and wear resistance. It enables effective chip removal through improved anti-adhesion characteristics and is highly temperature-resistant. It allows for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs.

Conical pointed burr according to DIN 8032 with cut conforming to DIN 8033, flattened tip.

Advantages

Significantly better stock removal rate than burrs with a conventional cross cut.
Saves time and money thanks to its very high stock removal rate on key materials.
Comfortable working with reduced vibration and less noise.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use

To prevent vibrations, place the tools on powerful drives with an elastically supported spindle wherever possible.
Observe the recommended rotational speeds.
If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.
To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6 mm with drives with a power output from 300 watts.

Safety notes

The very high stock removal rate can cause discolouration on the shank. This does not constitute a safety risk.

Materials that can be worked: Case-hardened steels; Cast steel; Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Tool steels

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Drive spindle; Flexible shaft drive; Robot; Stationary machines; Straight grinder; Tool machine

PFERD TOOLS VALUE

PFERD TOOLS EFFICIENCY

recommends burrs with the HICOAT coating for working for long periods with low levels of fatigue, whilst saving resources and achieving perfect results as quickly as possible.
