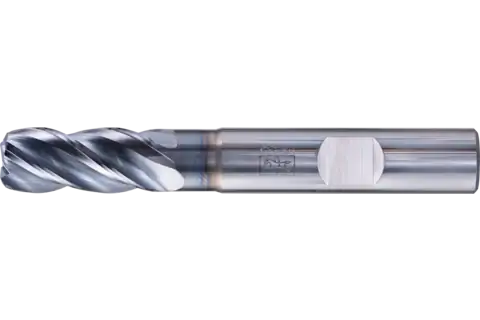

Universal end mill with four cutting edges UC4, Radius corner design

VHM corner mill long, 4 blades, diameter 10 mm, radius 1.5 mm TiAlN shank HB Universal Line roughing finishing slot cutting

Item number:
23000163
EAN:
4007220462676

Login / Register
Choose options
Corner radius RE
Cutting diameter DC
Shank type
Technical information
VHM corner mill long, 4 blades, diameter 10 mm, radius 1.5 mm TiAlN shank HB Universal Line roughing finishing slot cutting

Coating
TiAlN
Corner radius RE
1.5 mm
Corner type
Radius corner design
Cutting diameter DC
10 mm
Cutting edge count ZEFP
4 pcs.
Cutting material
AL40
Depth of cut maximum APMX
22 mm
Feed direction
x,y,(z)
Functional length LF
72 mm
Helix angles
35°/38°
Internal coolant
no
Neck diameter DN
9.5 mm
Norm
DIN 6527 Long
Shank diameter DCON
10 mm
Shank type
HB (DIN6535)
Usable length LU
32 mm
Version
90° with radius
Packaging unit
1 piece
Description

The solid tungsten carbide end mills are suitable for universal use on a variety of materials.

End mills for various applications, from roughing through to finishing.

The radius design is also suitable for free-form profile cutting.

Weldon shank HB in accordance with DIN 6535 with lateral driving surface.

Advantages
  • High productivity due to optimum stock removal rate.
  • Long tool life due to modern tool coating.
  • Design with neck chip channel.
Recommendations for use
  • Observe the recommended cutting data.
  • Ensure stable workpiece and tool clamping to achieve best performance.
Materials that can be worked
Aluminium
Annealed cast iron
Black annealed cast iron (GTS, GJMB)
Brass
Bronze
Case-hardened steels
Casting scale
Cast iron
Cast steel
Chipboard
Cobalt-based alloys
Copper
Ductile cast iron
Ferrite (magnetic material)
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Hard aluminium alloys
Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
Hard non-ferrous metal
Hardwood
High-temperature-resistant materials
Mill scale
Nickel-based alloys (e.g. Inconell and Hastelloy)
Nickel or titanium-based superalloys
Other non-ferrous metals
Plastics
Roller-bearing and ball-bearing steels
Scale
Soft aluminium alloys
Soft non-ferrous metal
Stainless steel (INOX)
Steel
Steel, cast steel
Steels over 700 N/mm² (> 220 HB)
Steels up to 1,200 N/mm² (< 38 HRC)
Thermoplastics
Titanium
Titanium alloys
Tool steels
Tough aluminium alloys
White annealed cast iron (GTW, GJMW)
Wood
Zinc
Applications
Milling
Drive types
Stationary machines
